SETTING VoIP

CARA SETTING VoIP

CONFIGURASI ROUTER
Continue with configuration dialog? [yes/no]: n
Press RETURN to get started!
Router>enable
Router#configure terminal
Router(config)#interface fastEthernet 0/0
Router(config-if)#ip address 192.168.1.1 255.255.255.0
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#

SETTING IP DHCP
Router(config)#ip dhcp pool VOICE
Router(dhcp-config)#default-router 192.168.1.1
Router(dhcp-config)#network 192.168.1.0 255.255.255.0
Router(dhcp-config)#option 150 ip 192.168.1.1
Router(dhcp-config)#exit
Router(config)#ip dhcp excluded-address 192.168.1.1

SETTING TELEPHONY SERVICE
Router(config)#telephony-service
Router(config-telephony)#max-dn 5
Router(config-telephony)#max-ephones 5
Router(config-telephony)#ip source-address 192.168.1.1 port 2000
Router(config-telephony)#auto assign 1 to 5
Router(config-telephony)#auto assign 4 to 6
Router(config-telephony)#exit
Router(config)#

SETTING DIAL NUMBER di ROUTER
Router(config)#ephone-dn 1
Router(config-ephone-dn)#number 009
Router(config-ephone-dn)#exit

SETTING DIAL NUMBER di ROUTER
Router(config)#ephone-dn 2
Router(config-ephone-dn)#number 001
Router(config-ephone-dn)#exit

PEMBUATAN DAN KONFIGURASI VLAN PADA CATALYS SWITCH SISCO
Switch(config)#interface fastEthernet 0/1
Switch(config-if)#switchport mode access
Switch(config-if)#switchport voice vlan 1
Switch(config-if)#exit

Switch(config)#interface fastEthernet 0/2
Switch(config-if)#switchport mode access
Switch(config-if)#switchport voice vlan 1
Switch(config-if)#exit

Switch(config)#interface fastEthernet 0/3
Switch(config-if)#switchport mode access
Switch(config-if)#switchport voice vlan 1
Switch(config-if)#exit

Proses Menyettingan VoIP Telah Selesai

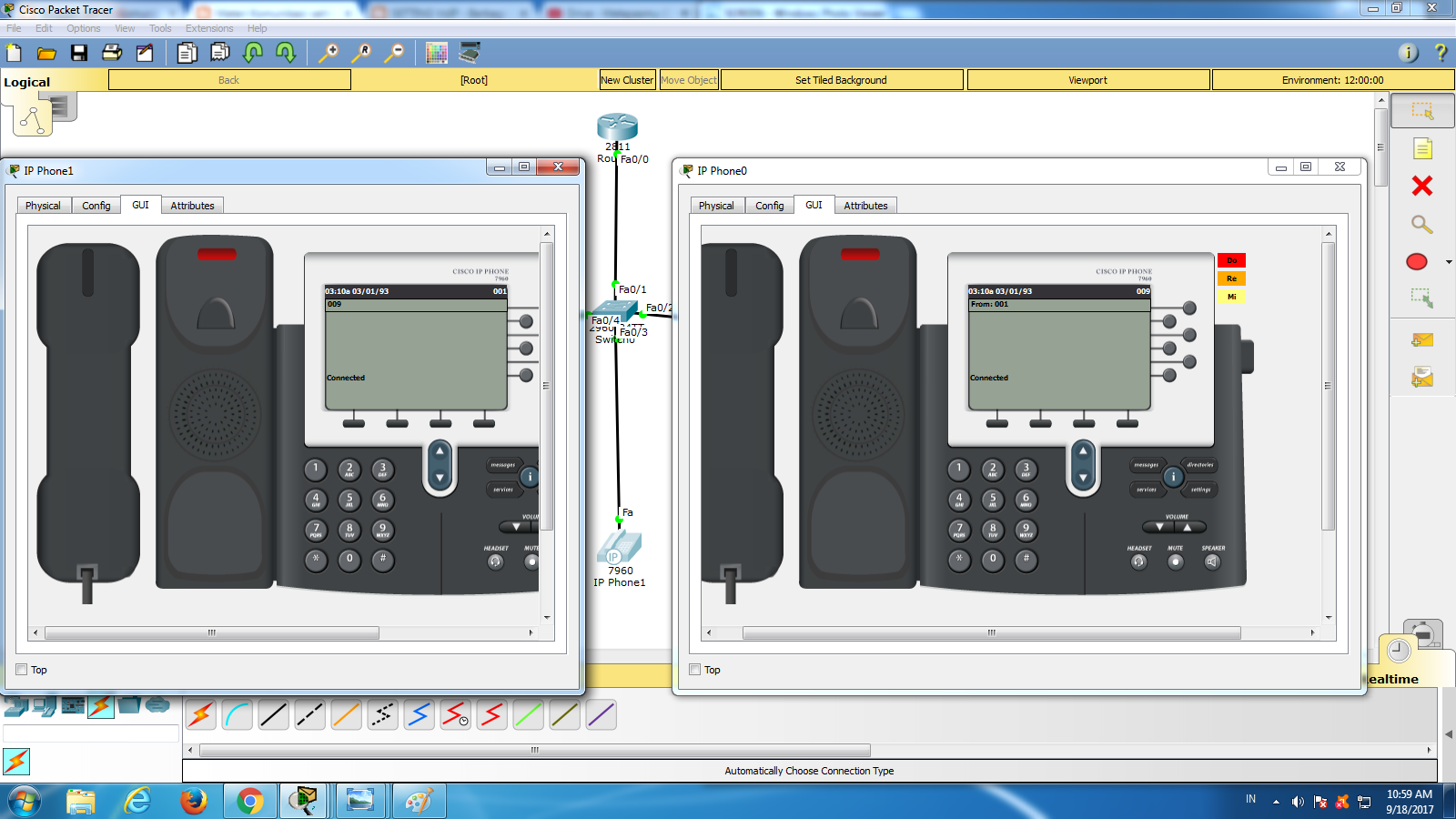

Dan Jika Dicoba Hasilnya Seperti Ini  :
telepon 1 akan terhubung dengan telepon 2
